Heavy Duty Rubber Lining
REMALOX
REMALOX HD
KG Bars
ZP Bars
Serrated profile plates
UVZ plates
RMS-MP-70
RMS-REMATHAN-G90
RMS-REMALOX-HD
HDL-MP-plates
HDL-plates (Heavy Duty Lining)
REMASTEEL 60
REMASTEEL 70

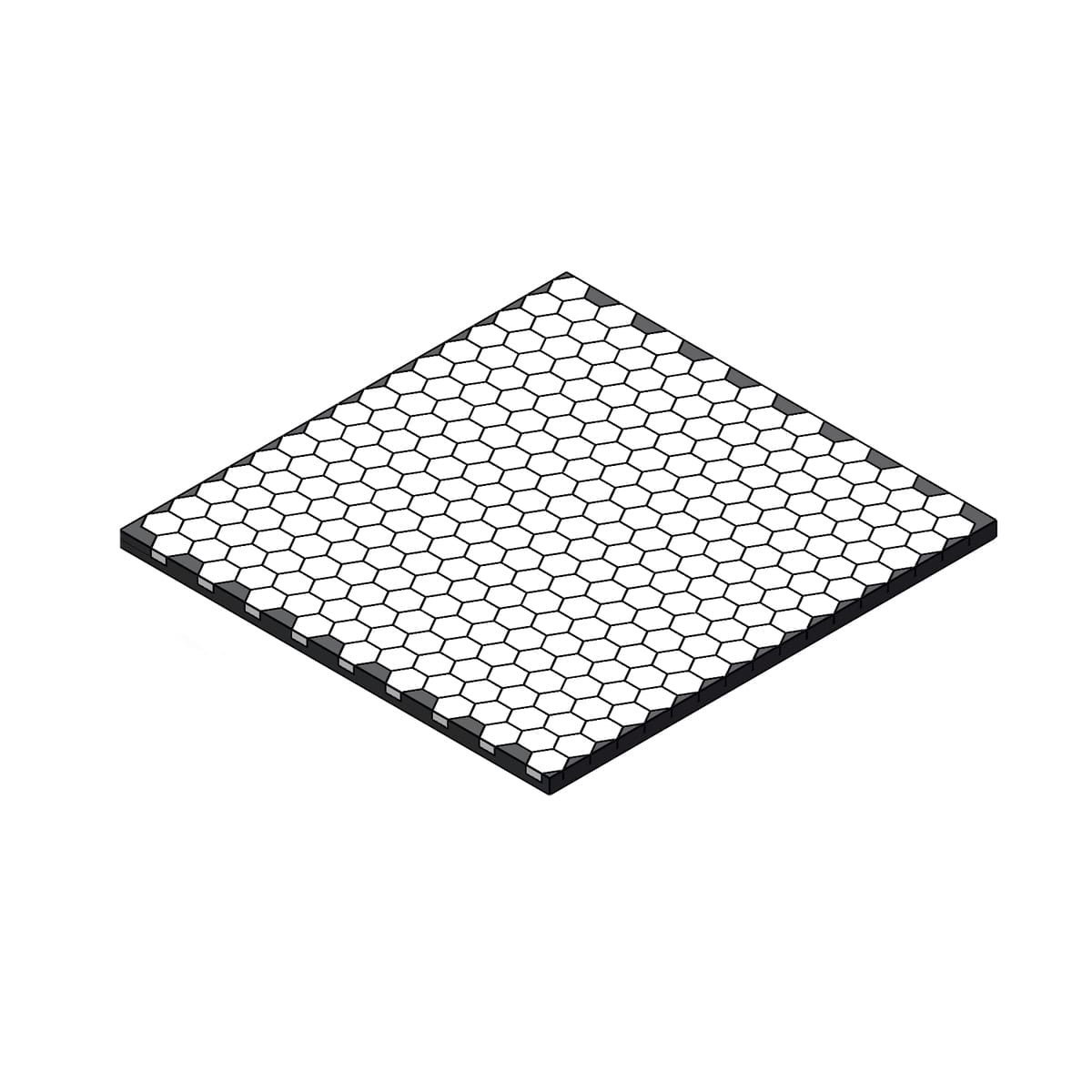

REMALOX

Ceramic/rubber lining material

REMALOX is a composite construction of highly wear-resistant 92 %-Al2O3 ceramic tiles (square, rectangular or hexagonal „SW“) vulcanized in special rubber with CN bonding layer.

Technical Enquiry Sales Enquiry View Catalogue

REMALOX HD

Ceramic/rubber material

REMALOX HD is a composite construction of highlywear-resistant 92 %-Al2O3 ceramic cylinders hot-vulcanized in special rubber on a 5mm S235 (St-37) metal layer, which enables a secure fitting by means of stud bolt. Available in three different thicknesses (35 mm, 55mm, 75 mm).

Technical Enquiry Sales Enquiry View Catalogue

KG Bars

KG bars with rubber quality REMALINE 70 with excellent resistance against wear in dry conditions and impact energy. Installation by means of vulcanized fastening profile and TT-Fastening Unit.

Technical Enquiry Sales Enquiry View Catalogue

ZP Bars

ZP bars with rubber quality REMALINE 70 with excellent resistance against wear in dry conditions and impact energy. The profile enables a compensation of unfavourable impact angles (for rubber: 10° - 50°). Installation by means of vulcanized fastening profile made of aluminium and TT-Fastening Unit.

Technical Enquiry Sales Enquiry View Catalogue

Serrated profile plates

Serrated profile plates ZP with rubber quality REMALINE 70 with excellent resistance against wear in dry conditions and impact energy. The profile enables a compensation of unfavourable impact angles (for rubber: 10° - 50°).

Technical Enquiry Sales Enquiry View Catalogue

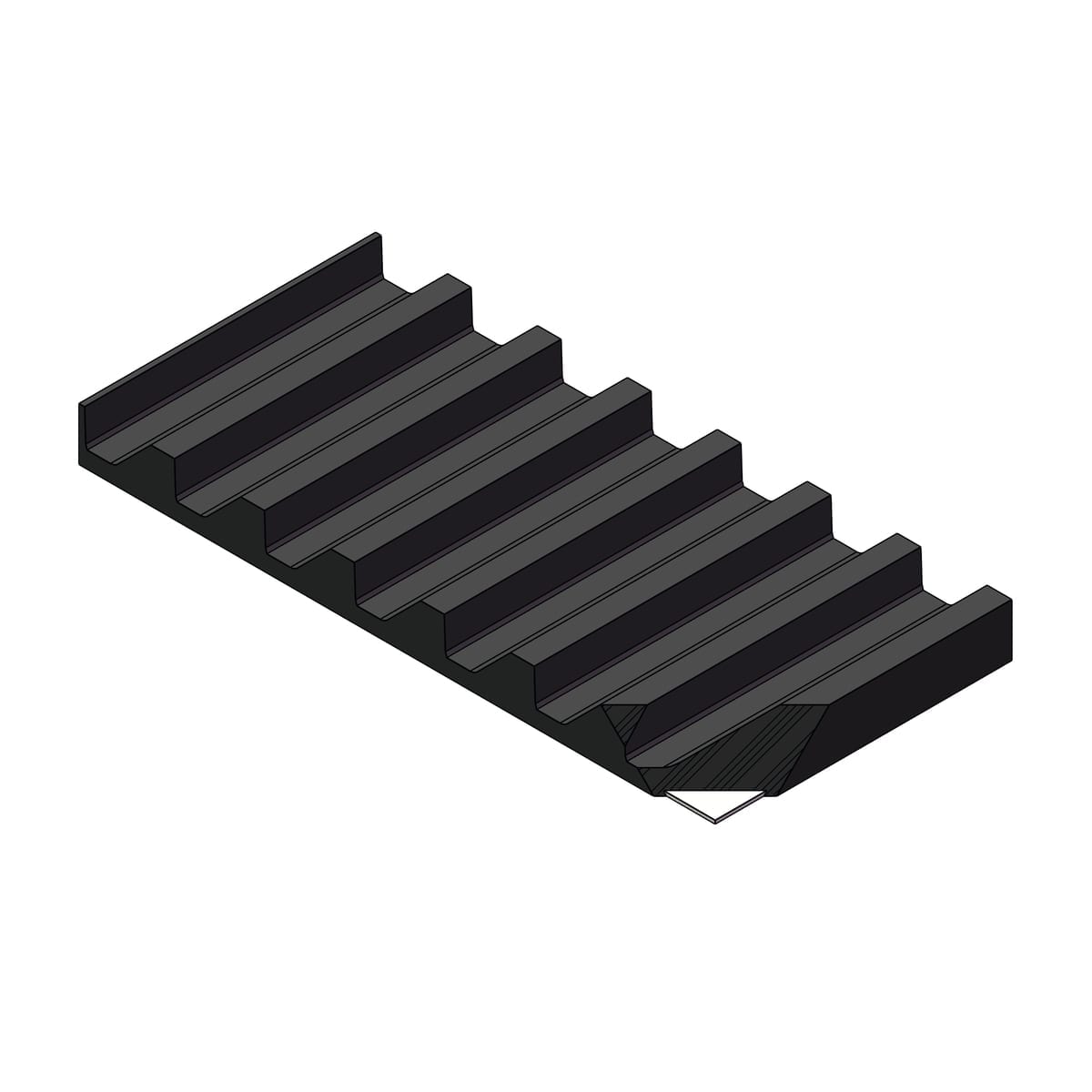

UVZ plates

Serrated rubber plates with metal backing

UVZ plates with rubber quality REMALINE 70 on 5 mm S235 (St-37) metal backing hot vulcanized with excellent resistance against wear in dry conditions and impact energy. The profile enables a compensation of unfavourable impact angles (for rubber: 10° - 50°). The S235 (St-37) metal backing on the undersurface enables a easy fitting on the applica- tion areas and prevents dust and material spillage.

Technical Enquiry Sales Enquiry View Catalogue

RMS-MP-70

Modular wear protection system

RMS -MP-70 modules in one size of 300/600x600 mm. Interconnection with overlap system. The modules have a trapezoidal shape. Highly wear-resistant rubber grade REMA PERFORMANCE line 70 and REMALINE 40 orange as a signal layer on 5 mm metal backing S235 (St-37) hot vulcanized. Thickness of the Remaline 40 orange signal layer depends on the total thickness of the RMS-MP-70 module. Mounting holes are already inserted at the specified distance. The vulcanized metal backing plate prevents fine material from settling under the lining and allows secure fastening.

Technical Enquiry Sales Enquiry View Catalogue

RMS-REMATHAN-G90

Modular wear protection system

RMS-REMATHAN-G90 modules in one size of 300/600x600 mm. Interconnection with over- lap system. The modules have a trapezoidal shape. Highly wear-resistant polyurethane grade REMATHAN G90 on 5 mm metal backing S235 (St-37). Mounting holes are already inserted at the specified distance. The metal backing prevents fine material from settling under the lining and allows for secure attachment.

Technical Enquiry Sales Enquiry View Catalogue

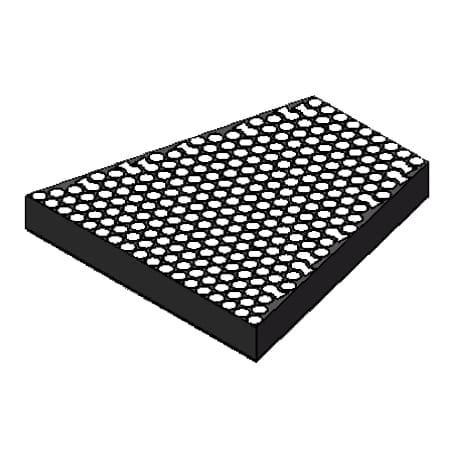

RMS-REMALOX-HD

Modular wear protection system

RMS-REMALOX-HD modules in one size of 300/600x600 mm. Highly wear resistant 92% Al2O3 ceramic elements vulcanized in special rubber matrix. A 5 mm steel plate S235 (St-37), which is hot vulcanized, is used for fastening by means of a welding stud. The modules have a trapezoidal shape.The vulcanized steel support plate allows secure attachment.

Technical Enquiry Sales Enquiry View Catalogue

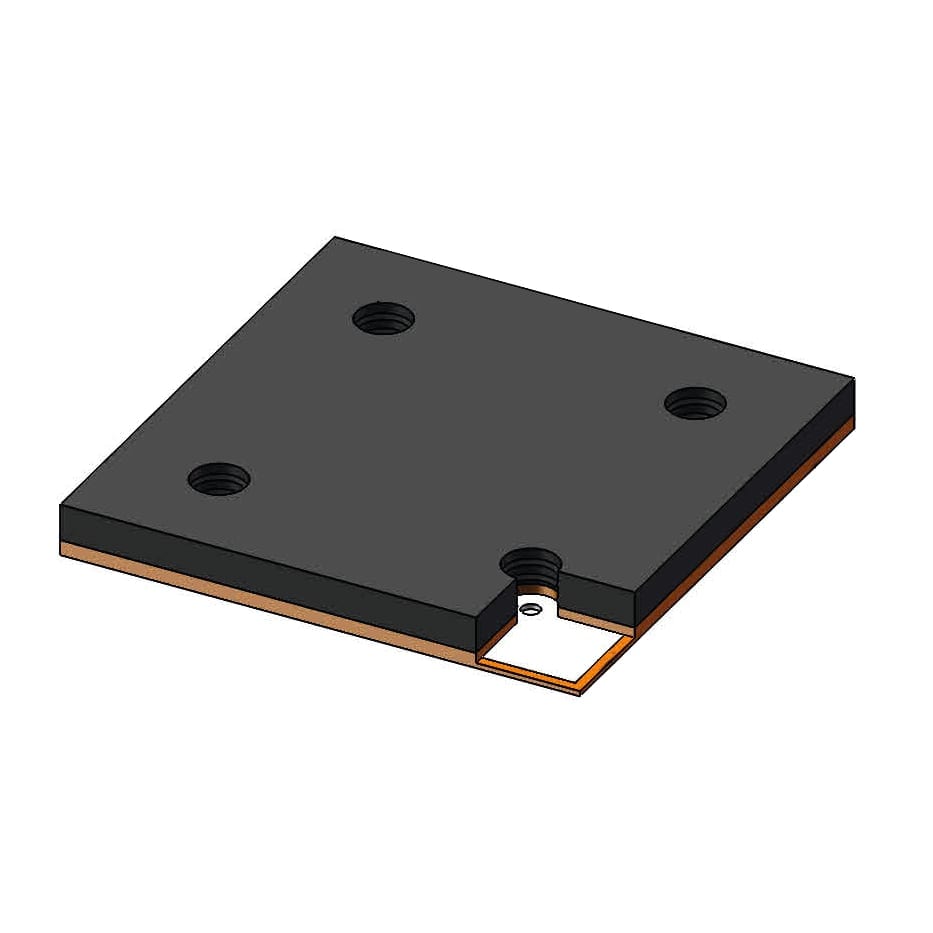

HDL-MP-plates

Heavy Duty Lining - Maintenance Pro

Highly wear resistant rubber quality REMALINE 70 combined with REMALINE 40 orange as signal layer hot vulcanized on 5 mm S235 (St-37) metal backing. The thickness of the REMALINE 40 orange signal layer depends on the total thickness of the HDL-MP-plates. Fastening holes in a given distance already properly drilled. The vulcanized metal backing enables an easy fitting on the application areas and prevents dust and material spillage.

Technical Enquiry Sales Enquiry View Catalogue

HDL-plates (Heavy Duty Lining)

Highly wear resistant rubber quality REMALINE 70 hot vulcanized on 5 mm S235 (St-37) split metal backing. Fastening holes in a given distance already properly drilled. The vulcanized metal backing enables an easy fitting on the application areas and prevents dust and material spillage.

Technical Enquiry Sales Enquiry View Catalogue

REMASTEEL 60

Rubber plates with metal backing

REMASTEEL plates with rubber quality REMALINE 60 with excellent resistance against wear in dry conditions and impact energy. A 3 mm S235 (St-37) metal backing hot vulca- nized on the undersurface enables a easy fitting on the application areas by means and prevents dust and material spillage.

Technical Enquiry Sales Enquiry View Catalogue

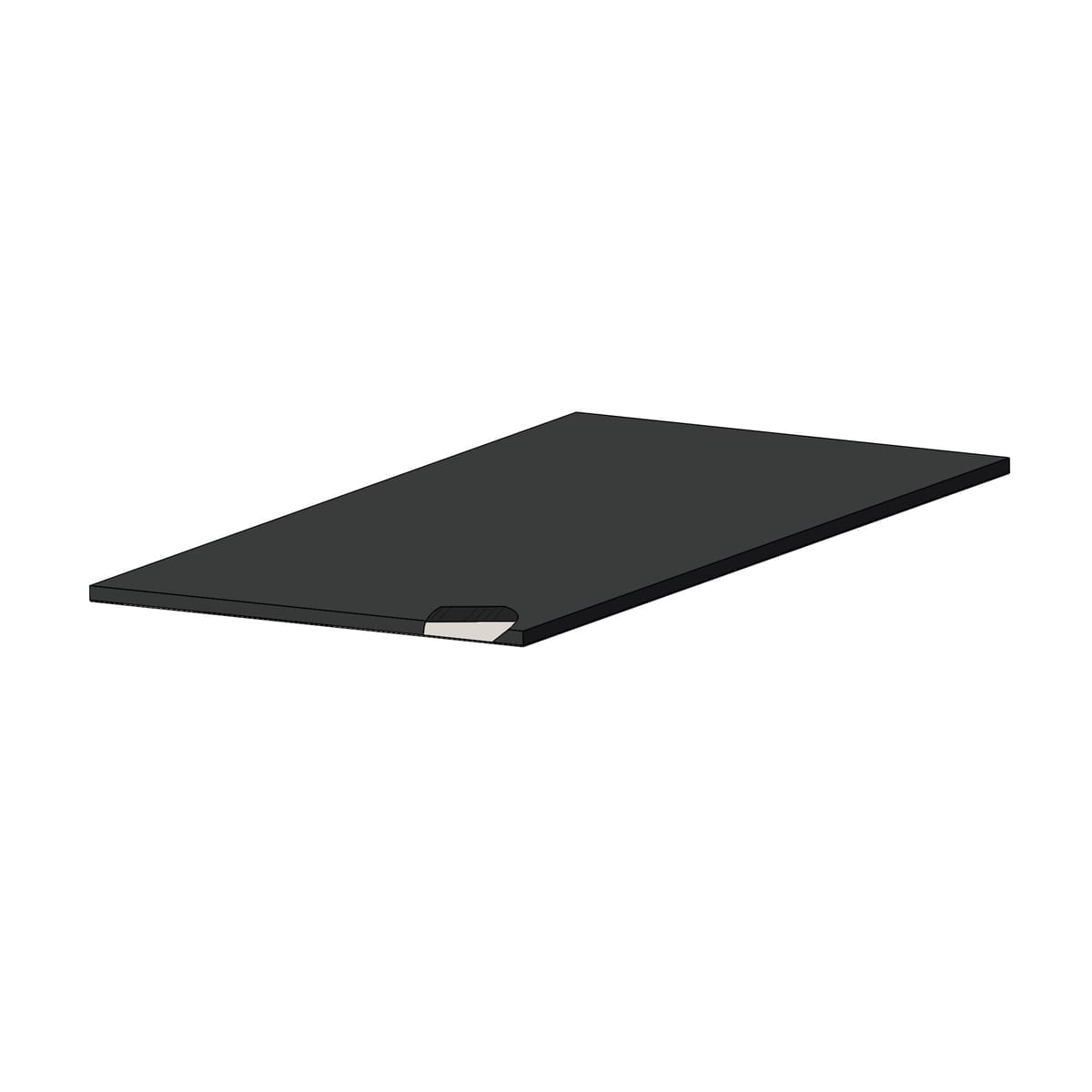

REMASTEEL 70

Rubber plates with metal backing

REMASTEEL plates with rubber quality REMALINE 70 with excellent resistance against wear in dry conditions and impact energy. A 3 mm S235 (St-37) metal backing hot vulca- nized on the undersurface enables a easy fitting on the application areas by means and prevents dust and material spillage.

Technical Enquiry Sales Enquiry View Catalogue

Product Information

Properties

  • CN bonding layer provides fast and longlasting adhesion
  • Highest abrasion resistance
  • Reduces operating costs
  • Long service life increases the efficiency
  • of your equipment
  • Good resistance against weather

Area of Application

  • Lining against extreme wear through abrasion at high speeds
  • For simple to medium duty applications in mining, gravel, sand and stone breaking mills and other industrial sectors
  • In applications like pipelines, vibratory feeders, cyclones, skips, bunkers, chutes, loading points, slides, hoppers, silos

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 62 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Highest abrasion resistance
  • Absorption of impact energies
  • Easy, flexible and fast application with
  • secure fastening
  • Reduces operating costs
  • Long service life increases the efficiency
  • of your equipment
  • Easy replacement
  • Good resistance against weather

Area of Application

  • Lining against extreme wear through impact and abrasion at high speeds
  • Lining of material transfer stations with low impact angles
  • For heavy to medium duty applications in mining, gravel, sand and stone breaking mills and other industrial sectors
  • In applications like pipelines, vibratory feeders, cyclones, skips, bunkers, chutes, loading points, slides, hoppers, silos, etc.

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 62 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Safe protection against abrasion in ad- dition to impact energies with large-size bulk material
  • Easy, flexible and fast application with secure fastening
  • Reduces operating costs
  • Long service-life increases the efficiency
  • of your equipment
  • Easy replacement
  • Good resistance against weather

Area of Application

  • In applications with abrasion at high speeds
  • For medium to heavy duty applications in mining, gravel, sand and stone breaking mills and other industrial sectors
  • In applications like bunkers, chutes, loading points

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.09 g/cm3 DIN EN ISO 1183-1
Hardness 63 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Safe protection against abrasion in ad- dition to impact energies with large-size bulk material
  • Easy, flexible and fast application with secure fastening
  • Reduces operating costs
  • Long service-life increases the efficiency of your equipment
  • Easy replacement
  • Good resistance against weather

Area of Application

  • In applications with abrasion at high speeds
  • Material transfer points with unfavorable angle of impact
  • For medium to heavy duty applications in mining, gravel, sand and stone breaking mills and other industrial sectors
  • In applications like bunkers, chutes, loading Points

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.09 g/cm3 DIN EN ISO 1183-1
Hardness 63 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Safe protection against abrasion in addition to impact energies with large-size bulk material
  • Easy, flexible and fast application with secure fastening
  • Reduces operating costs
  • Long service-life increases the efficiency of your equipment
  • Easy replacement
  • Good resistance against weather

Area of Application

  • Material transfer points with problematic impact angle
  • Impact aprons and elastic impact curtains

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.09 g/cm3 DIN EN ISO 1183-1
Hardness 63 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Safe protection against abrasion in addition to impact energies with large- size bulk material
  • Easy, flexible and fast application with secure fastening
  • Reduces operating costs
  • Long service-life increases the efficiency
  • of your equipment
  • Easy replacement
  • Good resistance against weather

Area of Application

  • Material transfer points with problematic impact angle
  • In applications with abrasion at high speeds
  • For medium to heavy duty applications in mining, gravel, sand and stone breaking mills and other industrial sectors
  • In applications like bunkers, chutes, loading points

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.09 g/cm3 DIN EN ISO 1183-1
Hardness 63 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Safe protection against impact due to dry, sharp-edged material
  • Better stability of the overall armor and prevents the penetration of fine material between the modules through overlap connection system
  • Trapezoidal shape reduces wear (leachings at seams)
  • Long service life leads to increased system availability
  • Simple, flexible and quick installation with secure attachment
  • Easy replacement
  • Optimal surface protection with wear indicator (signal layer)
  • Precise maintenance planning possible (preventive maintenance)
  • Reduction of storage and thus operating costs
  • Reduction of noise pollution
  • Vibration damping
  • Weatherability

Area of Application

  • Highest wear resistance in applications with impact and abrasion wear
  • Very heavy to medium heavy duty mining, quarries, sand and gravel works and other bulk industries
  • E.g. dump truck bodies, primary bunkers, hoppers, chutes, loading points, feeders, funnels, silos, etc., which are subject to high wear and noise

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 65 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Highly wear-resistant
  • Oil and grease resistant
  • High notch toughness
  • Trapezoidal shape reduces wear
  • (leachings at seams)
  • Simple, flexible and quick installation with secure attachment
  • Reduction of storage and thus operating costs
  • Easy replacement
  • Hydrolytic stability
  • Resistant to microbes
  • Applicable from -30°C to +80°C

Area of Application

  • Highest wear resistance in applications with abrasion wear and caking
  • Oil and grease resistant linings Medium-heavy mining, quarries, sand and gravel and other bulk industries
  • E.g. bunkers, chutes, loading points, feeders, gutters, funnels, silos, etc.

Specifications

Polymer basis Polyurethan DIN ISO 1629
Specific Weight 1.23 g/cm3 DIN EN ISO 1183-1
Hardness 90 Shore A DIN ISO 7619-1
Colour Green

Product Information

  • Highest abrasion resistance
  • Long service lifes lead to increased system availability
  • Simple, flexible and quick installation with secure attachment
  • Trapezoidal shape reduces wear
  • (leachings at seems)
  • Reduction of storage and thus operating costs

Area of Application

  • Extreme wear resistance in applications with abrasion wear especially at high speeds
  • Excellent wear properties in material tasks with a small impact angle
  • Medium to light mining, quarries sand and gravel and other bulk industries
  • E.g. vibratory feeders, skips, bunkers, chutes, loading points, hoppers, silos, etc. that are subject to abrasion wear

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 62 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • A precise and reliable production planning is possible (preventive maintenance)
  • Excellent wear protection with wear indi- cator (signal layer)
  • Safe protection against abrasion in ad- dition to impact energies with large-size bulk material
  • Easy, flexible and fast application with secure fastening
  • Reduction of operating costs
  • Long service-life increases the efficiency of your equipment
  • Easy replacement possible
  • Noise and vibration reducing
  • Good resistance against weather
  • Also available without holes

Area of Application

  • Highest resistance for applications with impact energies and abrasion
  • For heavy to medium duty applications in mining, gravel, sand and stone breaking mills and other industrial sectors
  • In applications like SKW bodies, bunkers, chutes, loading points, slides, hoppers, silos, etc.

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.09 g/cm3 DIN EN ISO 1183-1
Hardness 63 Shore A DIN ISO 7619-1
Colour Black/Orange

Product Information

Properties

  • Safe protection against abrasion in addition to impact energies with large- size bulk material
  • Easy, flexible and fast application with secure fastening
  • Reduction of operating costs
  • Long service-life increases the efficiency of your equipment
  • Easy replacement possible
  • Noise and vibration reducing
  • Good resistance against weather
  • Also available without holes

Area of Application

  • Highest resistance for applications with impact energies and abrasion
  • For heavy to medium duty applications in mining, gravel, sand and stone breaking mills and other industrial sectors
  • In applications like SKW bodies, bunkers, chutes, loading points, slides, hoppers, silos, etc.

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.09 g/cm3 DIN EN ISO 1183-1
Hardness 63 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Safe protection against abrasion in ad- dition to impact energies with large-size bulk material
  • Easy, flexible and fast application with secure fastening
  • Reduction of operating costs
  • Long service-life increases the efficiency of your equipment
  • Easy replacement possible
  • Noise and vibration reducing
  • Good resistance against weather

Area of Application

  • Highest resistance for applications with impact energies and abrasion
  • For heavy to medium duty applications in mining, gravel, sand and stone breaking mills and other industrial sectors
  • In applications like SKW bodies, bunkers, chutes, loading points, slides, hoppers, silos, etc., which are subject to wear and noise influences

Specifications

Polymer basis BR/IR/SBR DIN ISO 1629
Specific Weight 1.13 g/cm3 DIN EN ISO 1183-1
Hardness 60 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Safe protection against abrasion in addition to impact energies with large- size bulk material
  • Easy, flexible and fast application with secure fastening
  • Reduction of operating costs
  • Long service-life increases the efficiency of your equipment
  • Easy replacement possible
  • Noise and vibration reducing
  • Good resistance against weather

Area of Application

  • Highest resistance for applications with impact energies and abrasion
  • For heavy to medium duty applications in mining, gravel, sand and stone breaking mills and other industrial sectors
  • In applications like SKW bodies, bunkers, chutes, loading points, slides, hoppers, silos, etc.

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.09 g/cm3 DIN EN ISO 1183-1
Hardness 63 Shore A DIN ISO 7619-1
Colour Black

You may also be interested in...

Rubber Lining

Anticaking

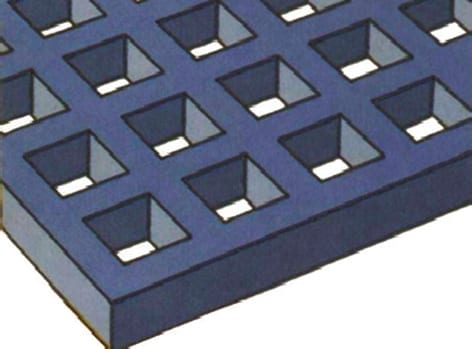

Screen Mats

Enquire Today
