REMA PERFORMANCEgrip 70/CN

The premium pulley lagging material

REMA PERFORMANCEgrip 70/CN is more than a true all-rounder. The new premium pulley lagging material can be used as a lining material for driven and non driven pulleys in the wet as well as in the dry processing and can also withstand heaviest operating conditions. The profiling allows a high capacity for dirt absorption and in combination with excellent abrasion resistance and improved elongation to break, long service life is achieved. REMA PERFORMANCEgrip 70/CN is suitable for high tension and critical pulley applications.


REMA PERFORMANCEgrip 70/CN-SL

The premium strip lagging

REMA PERFORMANCEgrip 70/CN - SL with excellent abrasion resistance, the values of im- proved elongation to break and effective evacuation of water, moisture and dirt. It‘s deep diamond profile and additional longitudinal grooves protect drums effectively and ensure stability in conveyor belt operation. The 343 millimeter width of the flooring strips can be flexibly cut to fit any drum width - both in the workshop and directly on site.


REMAGRIP 50

The universal lagging with high elasticity

REMAGRIP 50 has been designed for a variety of wet or dry applications and can be universally applied as a lagging for drive pulleys for low to medium-loaded fabric belts. Thanks to its excellent elasticity, REMAGRIP 50 also features excellent qualities for eliminating material build-up (also for non-driven pulleys).


REMAGRIP 60

The universal lagging with high wear resistance

REMAGRIP 60 has been designed for a variety of wet or dry applications and can be universally applied as a lagging for drive pulleys for low to medium-loaded fabric belts. REMAGRIP 60 offers optimum wear resistance and also features excellent qualities for eliminating material build-up (also for non-driven pulleys).


REMAGRIP 60 V

The self-extinguishing universal lagging with high wear resistance

REMAGRIP 60 V ist self-extinguishing and antistatic. It has been specially designed for ATEX operating conditions with high fire regulation or potentially explosive environments such as coal mines or power plants.

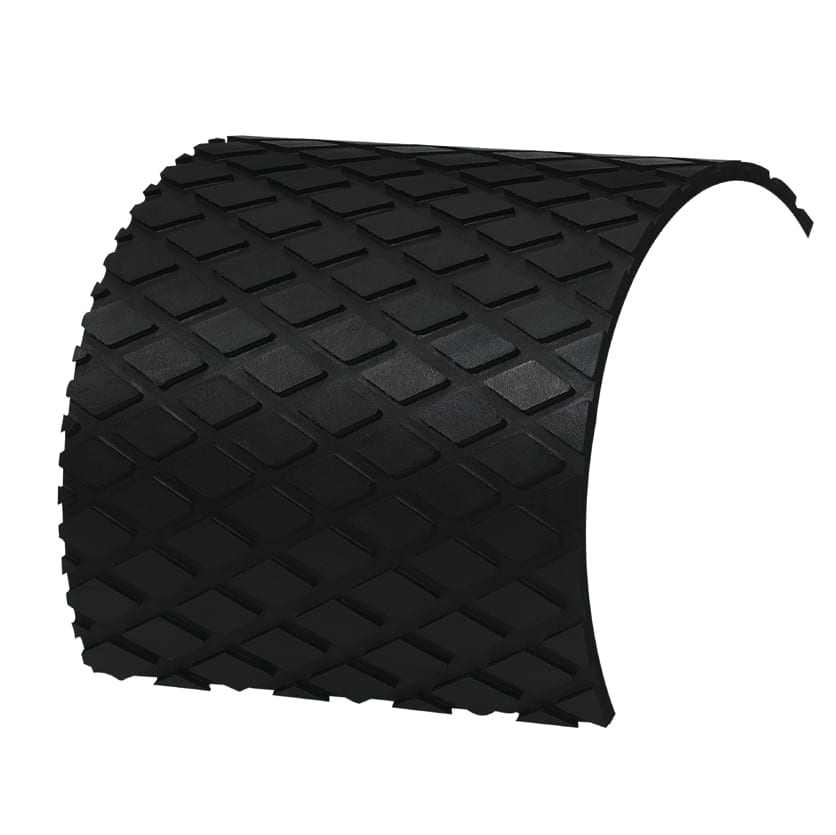

REMAGRIP 60 OIL

The oil and grease resistant universal lagging with high wear resistance

REMAGRIP 60 OIL has been specially designed for operating conditions in which oil and grease are or might be involved and can be universally applied as a lagging for drive pulleys for a variety of wet or dry applications.


REMAGRIP 60 HR

The heat resistant universal lagging with high wear resistance

REMAGRIP 60 HR has been specially designed as a lagging for drive pulleys in operating conditions with high-temperature environments. It is able to withstand a continuous thermal stress of 90°C and even short-term stresses of 110°C. Recommended adhesive system for heat resistant rubber lagging: PRIMER PR 200 and CEMENT PERFORMANCE 140 HT with HARDENER PERFORMANCE 140 HT.


REMAGRIP 60 WHITE OIL FOOD

The oil and grease resistant universal lagging with high wear resistance for food contact

REMALGRIP 60 WHITE OIL FOOD can be applied as a lagging for drive pulleys for a variety of wet or dry applications. It fulfills the requirements for food contact and can be safely applied in any systems with hygiene requirements in accordance with: • Federal Institute for Risk Assessment, Recommendations on Food Contact Materials XXI, Cat. 3+4 (Germany) • Regulation (EU) No. 1935/2004 • FDA Regulation No. 21 CFR 177.2600 • Required adhesive system for food contact: CEMENT SC 4000 white/HARDENER E-40 or CEMENT SC 2000 white/HARDENER ER-42 FDA Regulation No. 21 CFR 177.2600

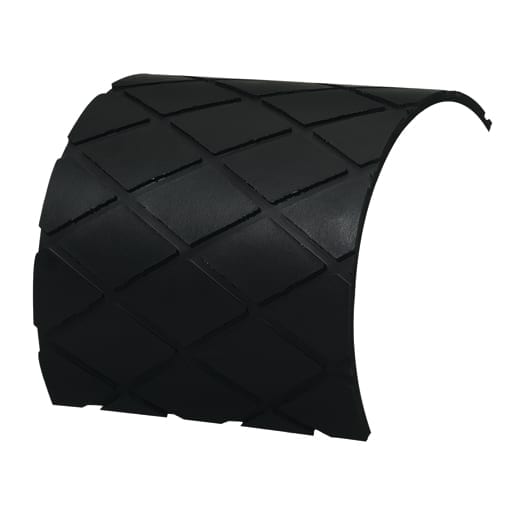

REMAGRIP 65

The universal lagging for medium-duty operating conditions

REMAGRIP 65 has been designed for a variety of wet or dry applications and can be uni- versally applied as a lagging for driven as well as non-driven pulleys for medium-loaded fabric and steelcord belts. REMAGRIP 65 offers optimum abrasion resistance and also features excellent qualities for eliminating material build-up.


REMAGRIP 65 V

The self-extinguishing, universal lagging for mediumduty operating conditions

RREMAGRIP 65 V is self-extinguishing and antistatic. It has been specially designed for ATEX operating conditions with high fire regulation or potentially explosive environments such as coal mines or power plants for example. Required adhesive system for antistatic rubber coatings: PRIMER PR 200 and CEMENT SC 4000 black/HARDENER ER-42 or CEMENT SC 2000 black/HARDENER UT-R 20. German underground approval: LOBA No. 18.43.21-89-33 Polish underground approval: Dopuszczenie WUG Katowice No. B/1724/IV/2016

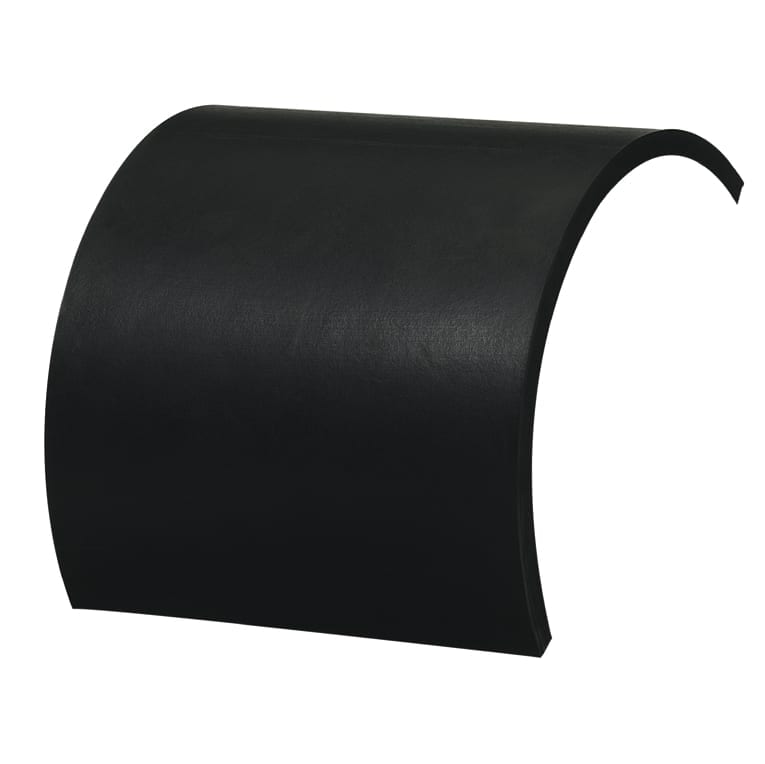

REMALINE 65

The smooth lagging for individual grooving

REMAGRIP 65 has been designed for a variety of wet or dry applications and can be universally applied as a lagging for driven as well as non-driven pulleys for fabric and steelcord belts. The plain surface can be individually regrooved with the RUBBER CUT system - perfectly fitted to the requested application.

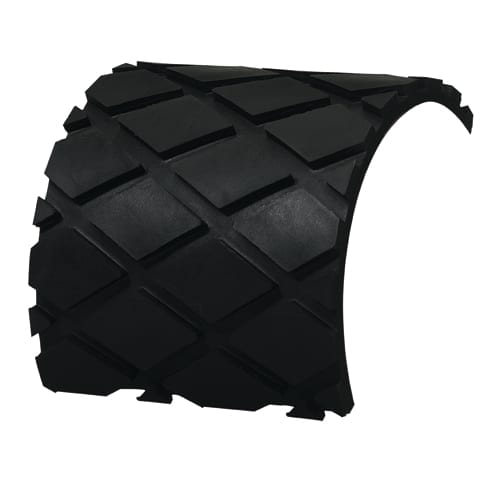

REMAGRIP 70

The universal lagging for heavy-duty operating conditions

REMAGRIP 70 has been designed for a variety of wet or dry applications and can be universally applied as a lagging for driven pulleys for heavy-loaded fabric and steelcord belts. REMAGRIP 70 offers optimum abrasion resistance, the deep grooving enables to handle large amounts of dirt and provides long operating life.


REMAGRIP 70 V

The self-extinguishing universal lagging for heavy-duty operating conditions

REMAGRIP 70 V is self-extinguishing and antistatic. It has been specially designed for challenging ATEX operating conditions with high fire regulation or potentially explosive environments such as coal mines or power plants for example. Required adhesive system for antistatic rubber coatings: PRIMER PR 200 and CEMENT SC 4000 black/HARDENER ER-42 or CEMENT SC 2000 black/HARDENER UT-R 20. German underground approval: LOBA No. 18.43.21-89-33 Polish underground approval: Dopuszczenie WUG Katowice No. B/1724/IV/2016


REMAGRIP 70 HR

The heat resistant universal lagging for heavyduty operating conditions

REMAGRIP 70 HR has been specially designed as a lagging for drive pulleys in challenging operating conditions with high-temperature environments. It is able to withstand a continuous thermal stress of 90°C and even short-term stresses of 110°C. Recommended adhesive system for heat resistant rubber lagging: PRIMER PR 200 and CEMENT PERFORMANCE 140 HT with HARDENER PERFORMANCE 140 HT.


REMAGRIP 100

The lagging for extremely wet operating conditions

REMAGRIP 100 has been specially designed as a lagging for drive pulleys in extremely wet operating conditions. REMAGRIP 100 offers optimum abrasion resistance, the knobbed surface enables to handle extreme environments such as wet operating conditions, clay or other smeary materials.

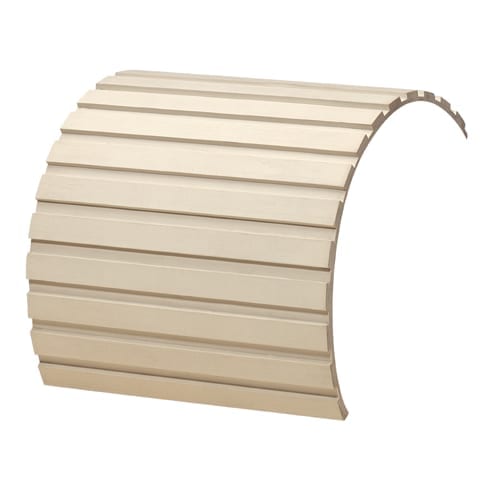

REMAGRIP 200 WHITE OIL FOOD

The lagging for the food processing industry

REMALGRIP 200 WHITE OIL FOOD can be applied as a lagging for non-driven as well as driven pulleys for a variety of wet or dry applications. It fulfills the requirements for food contact and can be safely applied in any systems with hygiene requirements in accor- dance with: • Federal Institute for Risk Assessment, Recommendations on Food Contact Materials XXI, Cat. 3+4 (Germany) • Regulation (EU) No. 1935/2004 • FDA Regulation No. 21 CFR 177.2600 • Required adhesive system for food contact: CEMENT SC 4000 white/HARDENER E-40 or CEMENT SC 2000 white/HARDENER ER-42


REMAGRIP CK-X

The premium quality for extreme conditions

The “knobbly” surface of the ceramic tiles provides optimum grip on pulleys subject to high stress. Ceramic material is suitable for pulley lagging, thanks chiefly to its specific properties of extremely high wear resistance provided by aluminium oxide (AL2O3). It replaces traditional materials, because it provides higher profitability by considerably increasing the service life and the efficiency of pulley laggings.


REMAGRIP CK-X HD (Heavy Duty)

For continuous grip under heavy-duty conditions

CK-X pulley lagging with 20 mm total lagging thickness. The thicker rubber matrix of REMAGRIP CK-X HD allows more deflection of the tiles under the belt. This property provides additional reserves with extreme belt tensions, especially in combination with fabric belts with high elongation or low cover thickness on the running side.


REMAGRIP CP-X

The benchmark for wear resistance

The plain surface of the ceramic tiles is highly efficient, particularly on non-drive pulleys (ranging from tail pulleys to snub pulleys) which are subject to high wear.

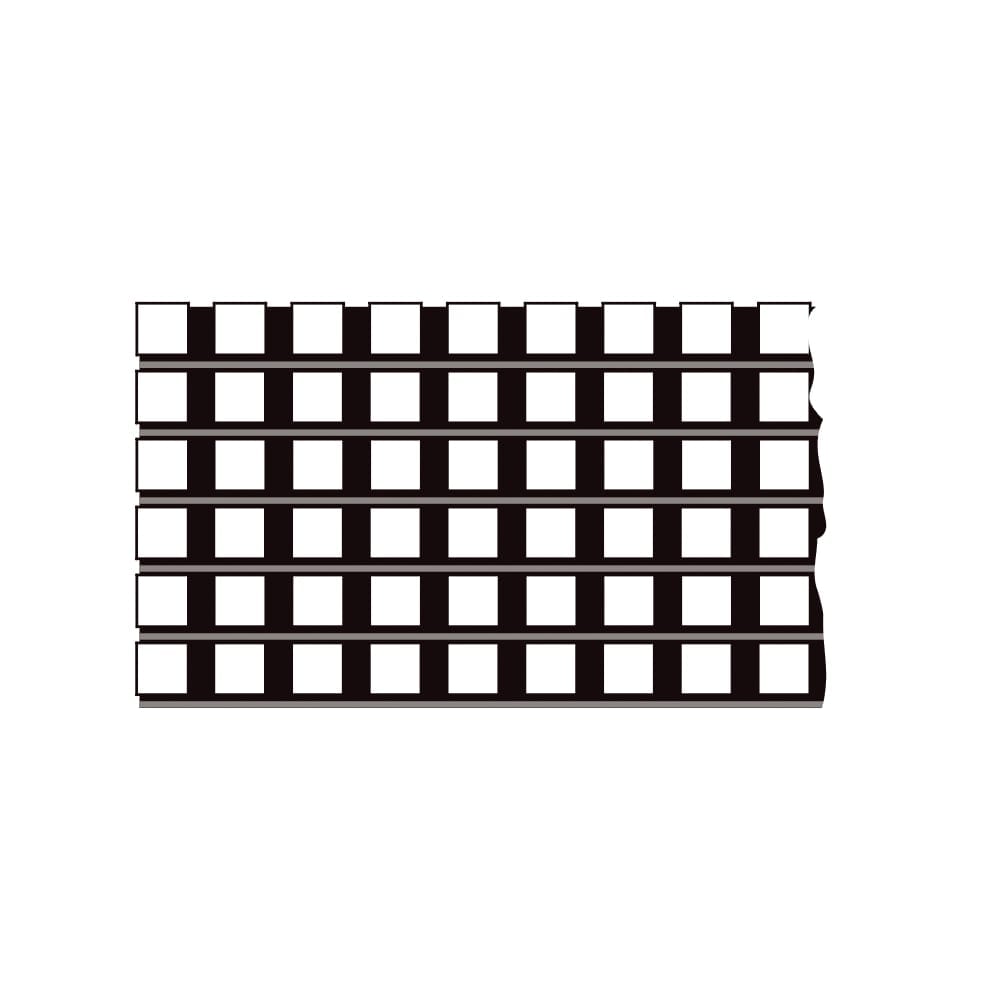

UNIGRIP 60

UNIGRIP 60 can be universally applied as a pulley lagging for simple applications.


UNIGRIP 65

UNIGRIP 65 can be universally applied as a pulley lagging for simple applications.


UNIGRIP 250 SL

UNIGRIP SL 250 can be universally applied as a pulley lagging for simple applications. The striplagging allows simple handling even for application in the conveyor system. The 10 meter longrolls can be cut to size for any pulley width with minimum waste.


UNILAG

UNILAG can be universally applied as a pulley lagging for simple applications.


Product Information

Properties

  • Reduces slippage between belt and pulley
  • Improves and stabilizes coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley from wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • Deep grooving to handle large amounts of dirt and provide long operating life
  • Simple and easy bond with CN-bonding layer
  • Improved abrasion
  • Improved elongation at break

Area of Application

  • Grooved rubber lagging for drive pulleys
  • Long belt conveyors
  • Large pulley diameters (from 800 mm)
  • For high-tension fabric and steelcord belts of all strengths

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 65 Shore A DIN ISO 7619-1
Profile 8 x 6 or 10 x 8 (Profile 50)
Colour Black

Product Information

Properties

  • REMA PERFORMANCEgrip 70/CN-SL premium quality with high abrasion resistance
  • Reduces slippage between belt and pulley
  • Improves and stabilizes coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley from wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • Deep grooving to handle large amounts of dirt and provide long operating life
  • Simple and easy to bond with CN-Bonding layer
  • Improved abrasion
  • Improved elongation at break
  • Easy to cut to size with
  • REMA TIP TOP rubber cutting device Type 32 and attachment

Area of Application

  • Grooved rubber lagging for drive pulleys
  • Long belt conveyors
  • Large pulley diameters (from 800 mm)
  • For high-tension fabric and steel cord-belts of all strengths
  • Pulley width up to 10.000 mm without circumferential seam
  • No loss when cutting to individual pulley width
  • Joint sealing with the well-proven T2-System

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 65 Shore A DIN ISO 7619-1
Profile 8 x 6 mm (Profile 50)
Colour Black

Product Information

Properties

  • Highly elastic, soft lagging for drive pulleys
  • Reduces slippage between belt and pulley
  • Improves and stabilizes coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • Excellent self-cleaning properties
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Grooved rubber lagging for drive pulleys
  • For low to medium-loaded fabric belts
  • For short belt conveyers or small pulley diameters (up to 800 mm)

Specifications

Polymer basis NR DIN ISO 1629
Specific Weight 1.11 g/cm3 DIN EN ISO 1183-1
Hardness 51 Shore A DIN ISO 7619-1
Profile 18 x 6 x 3 mm (Profile 20)
Colour Orange

Product Information

Properties

  • Excellent wear resistance
  • Reduces slippage between belt and pulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Grooved rubber lagging for drive pulleys
  • For low to medium-loaded fabric belts
  • Small pulley diameters (up to 800 mm)

Specifications

Polymer basis BR/IR/SBR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 64 Shore A DIN ISO 7619-1
Profile 18 x 6 x 3 mm (Profile 20)
Colour Black

Product Information

Properties

  • Self-extinguishing, antistatic and moderate oil resistant REMAGRIP 60 premium quality
  • Excellent wear resistance
  • Reduces slippage between belt and pulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Grooved rubber lagging for drive pulleys
  • For low to medium-loaded fabric belts
  • Small pulley diameters (up to 800 mm)

Specifications

Polymer basis CR DIN ISO 1629
Specific Weight 1.39 g/cm3 DIN EN ISO 1183-1
Hardness 60 Shore A DIN ISO 7619-1
Electric resistance Antistatic
Inflammability Self-extinguishing
CN bonding layer Conductive black
Profile 18 x 6 x 3 mm (Profile 20)
Colour Black

Product Information

Properties

  • Oil and grease resistant REMAGRIP 60 premium quality
  • Excellent wear resistance
  • Reducesslippagebetweenbeltandpulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Grooved rubber lagging for drive pulleys
  • For low to medium-loaded fabric belts
  • Small pulley diameters (up to 800 mm)

Specifications

Polymer basis NBR DIN ISO 1629
Specific Weight 1.15 g/cm3 DIN EN ISO 1183-1
Hardness 59 Shore A DIN ISO 7619-1
Profile 18 x 6 x 3 mm (Profile 20)
Colour Black

Product Information

Properties

  • Heat resistant REMAGRIP 60 premium quality
  • Excellent wear resistance
  • Reduces slippage between belt and pulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Grooved rubber lagging for drive pulleys
  • For low to medium-loaded fabric belts
  • Small pulley diameters (up to 800 mm)

Specifications

Polymer basis BR/IR DIN ISO 1629
Specific Weight 1.11 g/cm3 DIN EN ISO 1183-1
Hardness 60 Shore A DIN ISO 7619-1
Profile 18 x 6 x 3 mm (Profile 20)
Max. temperature up to 90 °C, short peaks up to 110 °C
Colour Black

Product Information

Properties

  • Oil and grease resistant REMAGRIP 60 premium quality
  • Food quality
  • Reduces slippage between belt and pulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Grooved rubber lagging for drive pulleys
  • For low to medium-loaded fabric belts
  • Small pulley diameters (up to 800 mm)

Specifications

Polymer basis NBR DIN ISO 1629
Specific Weight 1.22 g/cm3 DIN EN ISO 1183-1
Hardness 56 Shore A DIN ISO 7619-1
Profile 18 x 6 x 3 mm (Profile 20)
Colour White

Product Information

  • Excellent wear resistance
  • Reduces slippage between belt and pulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • CN bonding layer provides fast and good adhesion

Area of Application

  • For medium-strength fabric and steelcord belts
  • Grooved rubber lagging for drive pulleys

Specifications

Polymer basis BR/IR/SBR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 64 Shore A DIN ISO 7619-1
Profile 50 x 6 x 3 mm (Profile 50)
Colour Black

Product Information

Properties

  • Self-extinguishing, antistatic and moderate oil resistant REMAGRIP 65 premium quality
  • Excellent wear resistance
  • Reduces slippage between belt and pulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • CN bonding layer provides fast and good adhesion

Area of Application

  • For medium-strength fabric and steelcord belts
  • Grooved rubber lagging for drive pulleys

Specifications

Polymer basis CR DIN ISO 1629
Specific Weight 1.39 g/cm3 DIN EN ISO 1183-1
Hardness 60 Shore A DIN ISO 7619-1
Electric resistance Antistatic
Inflammability Self-extinguishing
CN bonding layer Conductive, black
Profile 50 x 6 x 3 mm (Profile 50)
Colour Black

Product Information

Properties

  • Smooth lagging for individual grooving
  • Reduces slippage between belt and pulley
  • Improves the coefficient of friction
  • Protects the pulley against wear and corrosion
  • Pulley lagging for preventing material
  • build-up, with positive influence on belt tracking
  • Production of custom groove designs is
  • possible (such as arrowhead design)
  • CN bonding layer provides fast and good adhesion

Area of Application

  • For individual regrooving with the RUBBER CUT system
  • For medium-strength fabric and steelcord belts

Specifications

Polymer basis BR/IR/SBR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 64 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Reduces slippage between belt and pulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley from wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • Deep grooving to handle large amounts of dirt and provide long operating life
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Grooved rubber lagging for drive pulleys
  • Long belt conveyors
  • Large pulley diameters (from 800 mm)
  • For high-tension fabric and steel-cord belts of all strengths

Specifications

Polymer basis BR/IR/SBR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 64 Shore A DIN ISO 7619-1
Profile 8 x 6 oder 10 x 8 (Profile 50)
Colour Black

Product Information

Properties

  • Self-extinguishing, antistatic REMAGRIP 70 premium quality
  • Moderate oil resistant
  • Reduces slippage between belt and pulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley from wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • Deep grooving to handle large amounts of dirt and provide long operating life
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Grooved rubber lagging for drive pulleys
  • Long belt conveyors
  • Large pulley diameters (from 800 mm)
  • For high-tension fabric and steel cord belts of all strengths

Specifications

Polymer basis CR DIN ISO 1629
Specific Weight 1.39 g/cm3 DIN EN ISO 1183-1
Hardness 60 Shore A DIN ISO 7619-1
Electric resistance Antistatic
Inflammability Self-extinguishing
CN bonding layer Conductive, black
Profile 8 x 6 oder 10 x 8 (Profile 50)
Colour Black

Product Information

Properties

  • Heat resistant REMAGRIP 70 premium quality
  • Reduces slippage between belt and pulley
  • Improves and stabilises coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley from wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • Deep grooving to handle large amounts of dirt and provide long operating life
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Grooved rubber lagging for drive pulleys
  • Long belt conveyors
  • Large pulley diameters (from 800 mm)
  • For high-tension fabric and steel cord belts of all strengths

Specifications

Polymer basis BR/IR DIN ISO 1629
Specific Weight 1.11 g/cm3 DIN EN ISO 1183-1
Hardness 60 Shore A DIN ISO 7619-1
Profile 8 x 6 oder 10 x 8 (Profile 50)
Max temperature up to 90 °C, short peaks up to 110 °C
Colour Black

Product Information

Properties

  • Excellent self-cleaning properties
  • Good belt tracking even in extremely wet conditions and where there‘s increased risk of slippage
  • Superior wear resistance
  • CN bonding layer provides fast and good adhesion

Area of Application

  • REMAGRIP 100 for lagging of drive pulleys for light belt conveyors (up to EP 630)
  • REMAGRIP 100 HD (heavy-duty) also for medium belt conveyors (up to EP 1250)
  • Extremely difficult operating conditions (such as extremely wet conditions, clay or other smeary materials)

Specifications

Polymer basis NR/BR DIN ISO 1629
Specific Weight 1.09 g/cm3 DIN EN ISO 1183-1
Hardness 63 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Food quality, oil and grease resistant
  • Horizontal grooves ensure excellent evacuation of dirt and easy cleaning
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Special rubber lagging for the food processing industry
  • Pulley lagging for rubber and PVC/PVG conveyor belts

Specifications

Polymer basis NBR DIN ISO 1629
Specific Weight 1.22 g/cm3 DIN EN ISO 1183-1
Hardness 56 Shore A DIN ISO 7619-1
Colour White

Product Information

Properties

  • Vulcanised Al2O3 ceramic tiles
  • Single-row ceramic, with knobs
  • Highly resistant to wear
  • Elastic base made of REMALINE 70 or REMALINE 70 V protects the belt
  • Simple and durable affixing with REMA TIP TOP bonding systems

Area of Application

  • Pulley lagging for pulleys operating under extreme conditions
  • For wet, clay-containing, muddy and abrasive materials
  • Also for belts under very high tension
  • Especially suitable for drive pulleys subjected to extreme wear (CK-X)

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.15 g/cm3 DIN EN ISO 1183-1
Hardness 59 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Fabric reinforced, oil and grease resistant REMALINE 70 premium quality
  • Superior resistance to wear
  • Excellent resistance to abrasion
  • Extremely high tensile strength
  • Good weather resistance
  • CN bonding layer provides fast and good adhesion

Area of Application

  • Material transfer points, chutes, bunkers and slides
  • Lining for truck bodies, impact curtains and vibrating conveyors

Product Information

Properties

  • Vulcanised alumina oxide (Al2O3) ceramic tiles
  • Single-row ceramic, plain
  • Highly resistant to wear
  • Elastic base protects the belt
  • Simple and durable affixing with REMA TIP TOP bonding systems

Area of Application

  • Pulley lagging for pulleys operating under extreme conditions
  • For wet, clay-containing, muddy and abrasive materials
  • Also for very high belt tensions
  • For tail pulleys subjected to extreme wear
  • Fornon-powereddrums

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.12 g/cm3 DIN EN ISO 1183-1
Hardness 62 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Reduces slippage between belt and pulley
  • Increases and stabilises the coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive effect on tracking
  • Wear-resistant material quality

Area of Application

  • Profile tread for drive pulleys
  • For low to averagely loaded textile conveyor belts
  • Small pulley diameters (up to 800 mm)

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.18 g/cm3 DIN EN ISO 1183-1
Hardness 62 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Reduces slippage between belt and pulley
  • Increases and stabilizes the coefficient off friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive effect on tracking
  • Wear-resistant material quality

Area of Application

  • Profiled tread for drive pulleys
  • For low to medium loading of textile conveyor belts
  • For small pulley diameters (up to 800 mm)

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.18 g/cm3 DIN EN ISO 1183-1
Hardness 62 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Reduces slippage between belt and pulley
  • Increases and stabilizes the coefficient of friction
  • Evacuation of moisture and dirt
  • Protects the pulley against wearand corrosion
  • Prevents material buildup
  • Positive influence on belt tracking
  • Wear-resistant material quality

Area of Application

  • Profile tread for drive pulleys
  • For low to averagely loaded textile conveyor belts
  • Small pulley diameters (up to 800 mm)

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.15 g/cm3 DIN EN ISO 1183-1
Hardness 62 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Symmetrical profile – for use in horizontal and vertical directions
  • Scrap is reduced to a minimum
  • Cost-efficient material
  • Evacuation of moisture and dirt
  • Protects the pulley against wear and corrosion
  • Prevents material build-up
  • Positive influence on belt tracking
  • Material is wear resistant

Area of Application

  • Grooved rubber lagging for drive pulleys
  • For low to medium-loaded fabric belts

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.18 g/cm3 DIN EN ISO 1183-1
Hardness 62 Shore A DIN ISO 7619-1
Colour Black

Enquire Today
