Rollers, Frames, Idlers & Pulleys
REMASLEEVE VSB-RE 40 ORANGE
REMASLEEVE VSB-E 40
REMASLEEVE KSB-E 60
REMAROLL
REMATRACK
Pulley Manufacturing

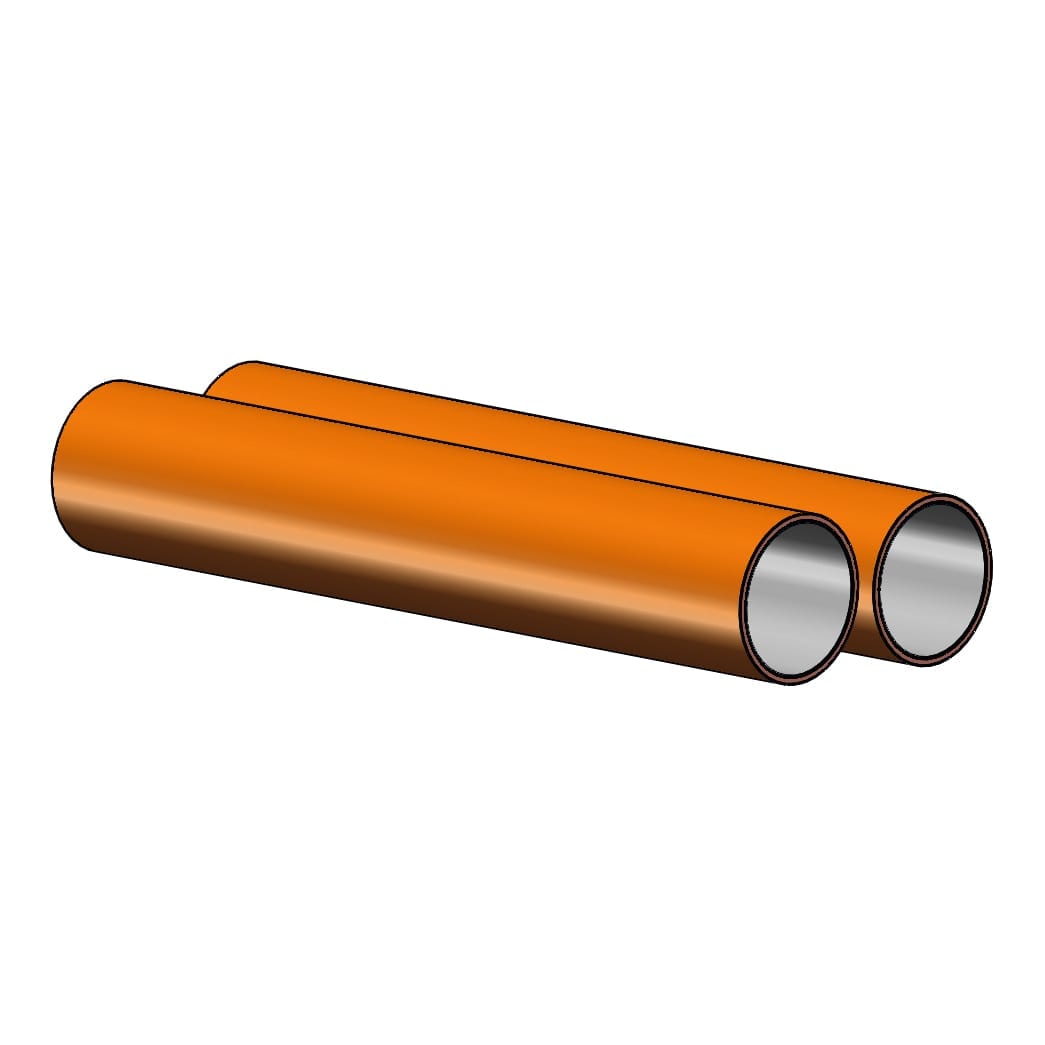

REMASLEEVE VSB-RE 40 ORANGE

REMASLEEVE special rubber sleeves for conveyor belt idlers for all common diameters of idlers according to the DIN standard. Quick and easy mounting through pneumatic device.

Technical Enquiry Sales Enquiry View Catalogue

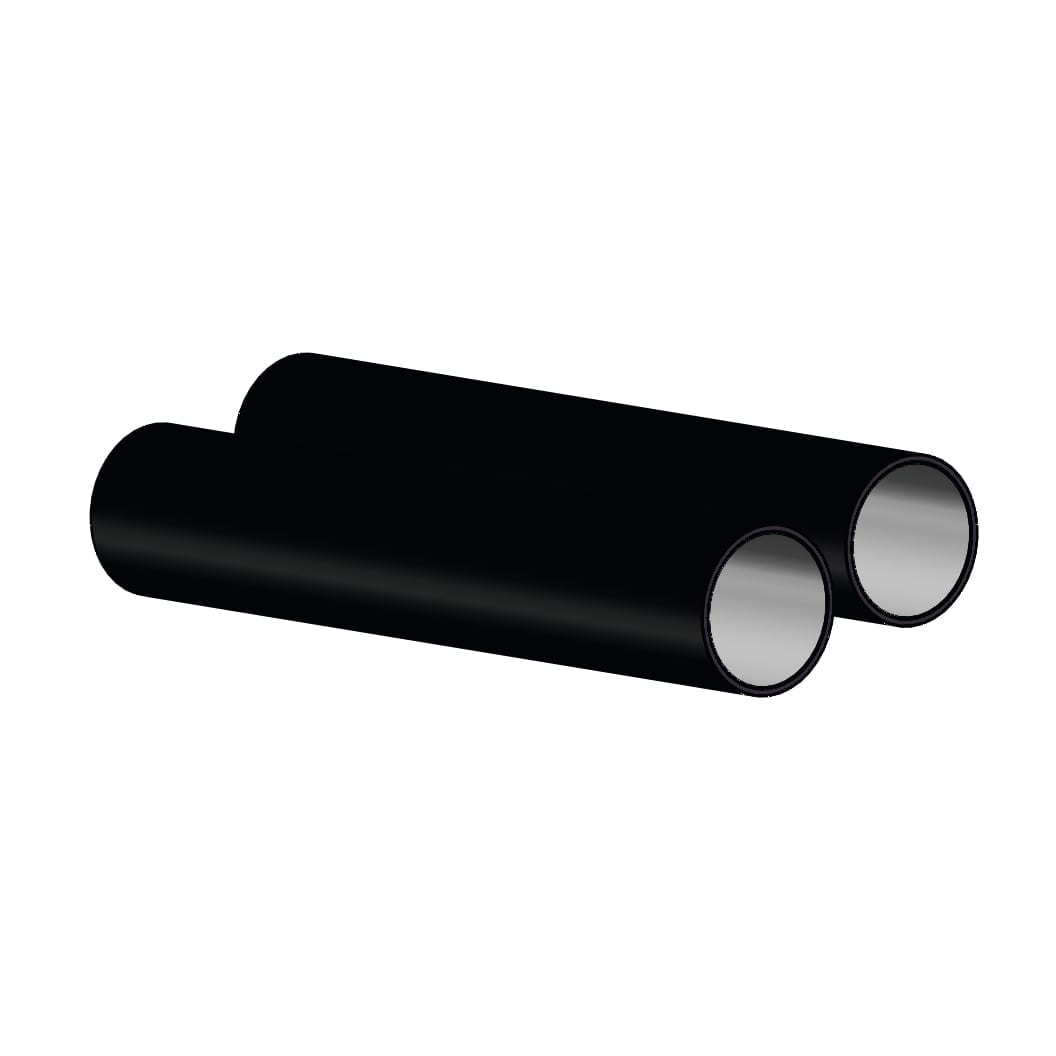

REMASLEEVE VSB-E 40

REMASLEEVE special rubber sleeves for conveyor belt idlers for all common diameters of idlers according to the DIN standard. Quick and easy mounting through pneumatic device.

Technical Enquiry Sales Enquiry View Catalogue

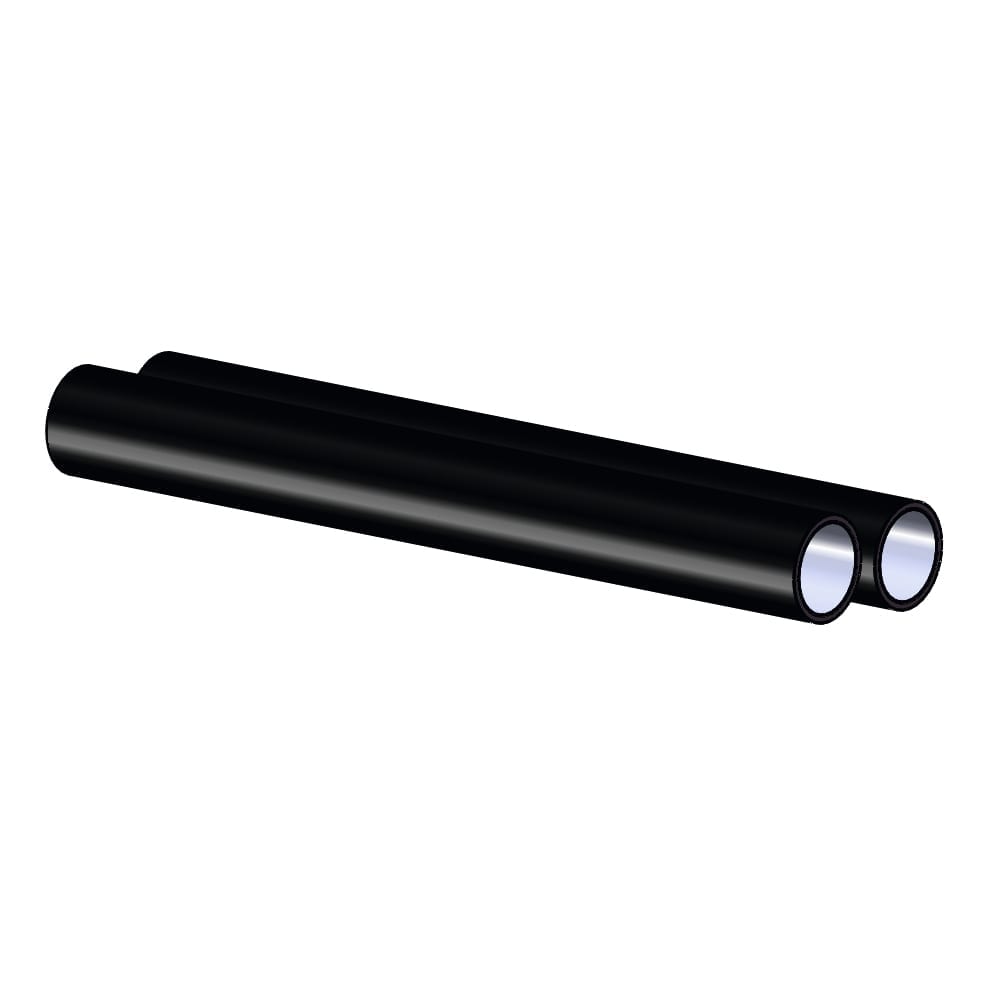

REMASLEEVE KSB-E 60

REMASLEEVE special rubber sleeves for conveyor belt idlers for all common diameters of idlers according to the DIN standard. Quick and easy mounting through pneumatic device.

Technical Enquiry Sales Enquiry View Catalogue

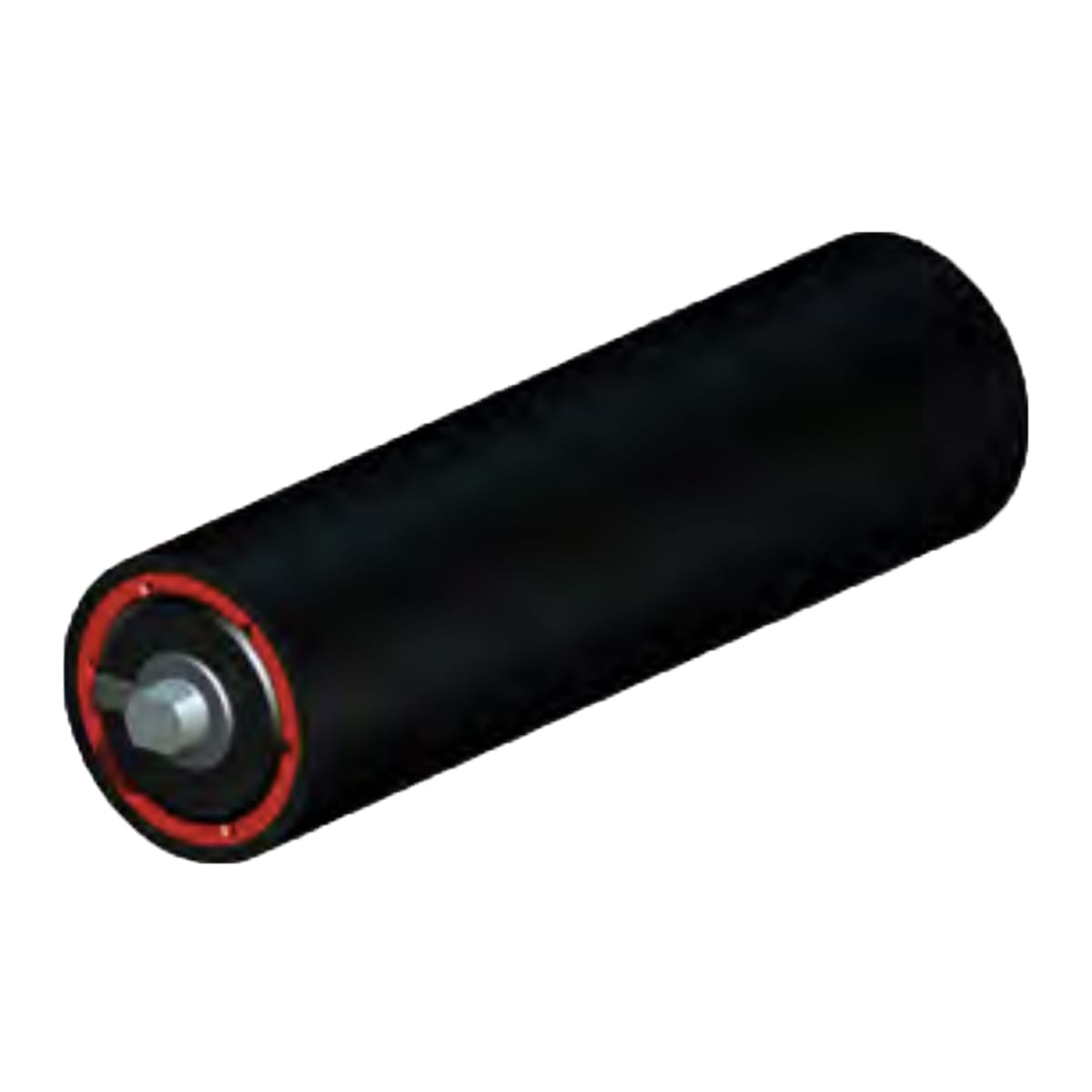

REMAROLL

REMAROLL HDPE-rollers are extremely long lasting and for universal use in all convey- ing systems. Depending on the area of application, the axis can be manufactured with different types of steel and axis ends. The tube, the bearing cases and labyrinth sealings are manufactured entirely from high quality polyethylene. This leads to noise reduced operation, reduces wear and caking and makes the roller lighter by more than 50% in comparison to traditional steel rollers.

Technical Enquiry Sales Enquiry View Catalogue

REMATRACK

Conveyor belt centering station

REMATRACK - Centering stations allow a continuous belt steering and corrections of the conveyor belt run. REMATRACK ensures that the conveyor belt is always centered in the idler, thus avoiding damage caused by misalignment of the conveyor belt. Type REMATRACK OT is intended for use in the upper strand. Type REMATRACK UT is intended for use in the lower stand.

Technical Enquiry Sales Enquiry View Catalogue

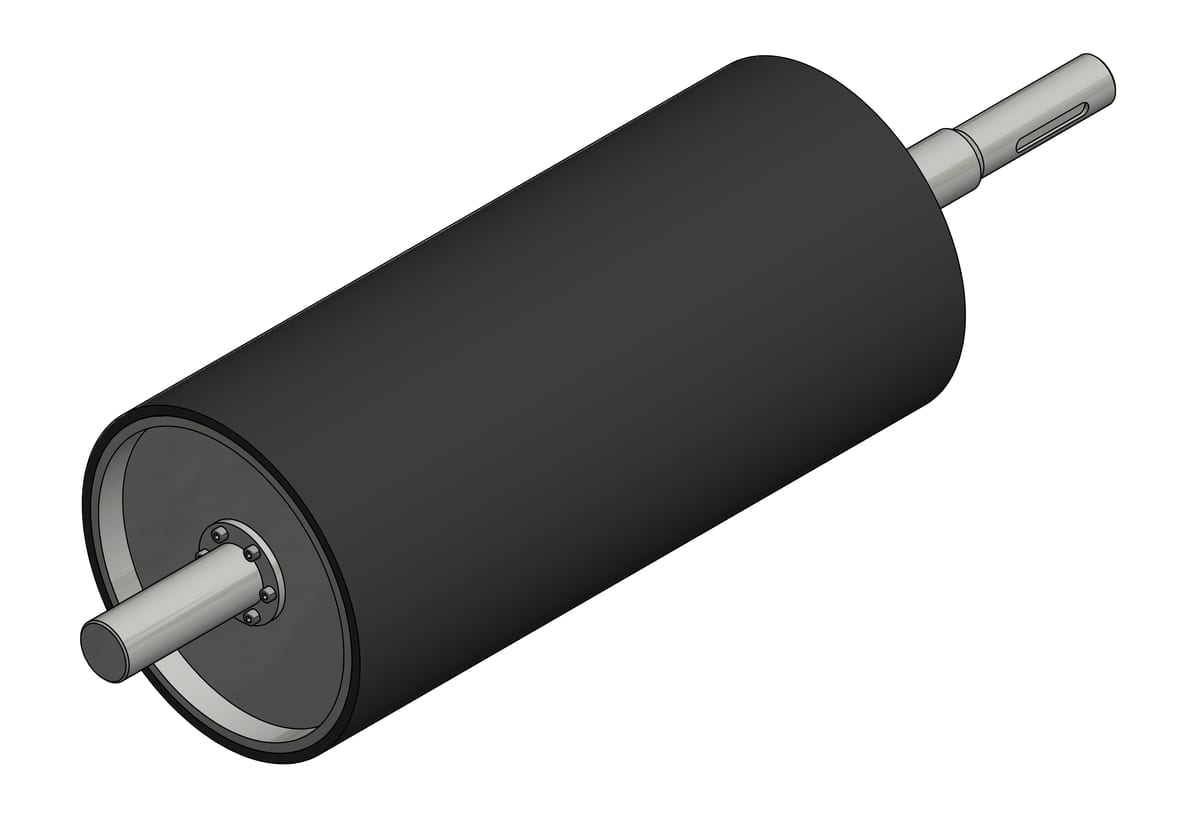

Pulley Manufacturing

The in house pulley manufacturing by REMA TIP TOP of- fers the opportunity to obtain excellent technology from a single source. Pulleys in different sizes, tailor made to the customer‘s requirements. On request, pulleys can be facto- ry-fitted with REMAGRIP or REMALINE pulley lagging.

Technical Enquiry Sales Enquiry View Catalogue

Product Information

Properties

  • Protection against caking, wear and corrosion
  • Extremely elastic
  • Excellent self-cleaning properties in wet operation
  • CN bonding layer provides fast and long lasting adhesion

Area of Application

  • Rubber sleeves for carrying idlers and return idlers

Specifications

Polymer basis NR DIN ISO 1629
Specific Weight 1.05 g/cm3 DIN EN ISO 1183-1
Hardness 45 Shore A DIN ISO 7619-1
Colour Orange

Product Information

Properties

  • Protection against caking, wear and corrosion
  • CN bonding layer provides fast and longlasting adhesion

Area of Application

  • Rubber sleeves for carrying idlers and return idlers

Specifications

Polymer basis NR/SBR DIN ISO 1629
Specific Weight 1.04 g/cm3 DIN EN ISO 1183-1
Hardness 40 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Protection against corrosion and wear
  • Cost-effective tubing sleeve for protection against corrosion
  • CN bonding layer provides fast and long lasting adhesion

Area of Application

  • Rubber sleeves for carrying idlers and return idlers

Specifications

Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.13 g/cm3 DIN EN ISO 1183-1
Hardness 60 Shore A DIN ISO 7619-1
Colour Black

Product Information

Properties

  • Extremely long lasting
  • Light weight
  • Very rigid and highly impact resistant design
  • Waterproof and dust resistant
  • Belt-friendly
  • High noise absorbing capacity
  • Maintenance-free, resulting in minimal time needed for inspection and maintenance
  • Labyrinth sealings and ball bearings of high quality
  • Different roller diameter available from 89 – 159 mm
  • Designed for service temperatures from 40°C to +80°C and belt speeds up to 4 m/s
  • A special version for use (ATEX 21) in ATEX Zone 21 is available upon request
  • Can be used for bulk materials with max. specific weight of 3.0 g/cm3

Area of Application

  • Universally applicable for all conveying systems
  • Particularly suited the concrete, sand and gravel and recycling industry, also sticky materials

Product Information

Properties

  • Very robust steel construction
  • Basic frame is infinitely extendable
  • Two-sided clamping unit allow very precise adjustment of the REMATRACK
  • The central axis of Rotation is provided with 2 Z bearings and double sealing to ensure the rotation function permanently
  • Rotary movement of the support roller- carrier is structurally limited to +/- 30 °
  • Idlers with robust Z bearings and shaft seals; Steel sheath thickness 6 mm
  • For type OT, the idlers have 4 Z bearings each to carry the highest load permanently
  • Idlers are coated (hot-casting process) with abrasion-resistant PUR for a particularly long service life
  • Idlers are secured against falling out
  • Available for belt widths from 500 mm up to 1400 mm
  • Operating temperatures up to 70°C and belt speeds up to 4.5 m/s

Area of Application

  • REMATRACK is suitable for all conveyor systems with a misalignment of the conveyor belt due to off-centric loading, sedimentation or wind
  • Standard version: Idlers with red polyurethane

Product Information

Available Sizes

  • Diameter from 160 mm up to 800 mm
  • Pulley up to belt width 1600 mm

You may also be interested in...

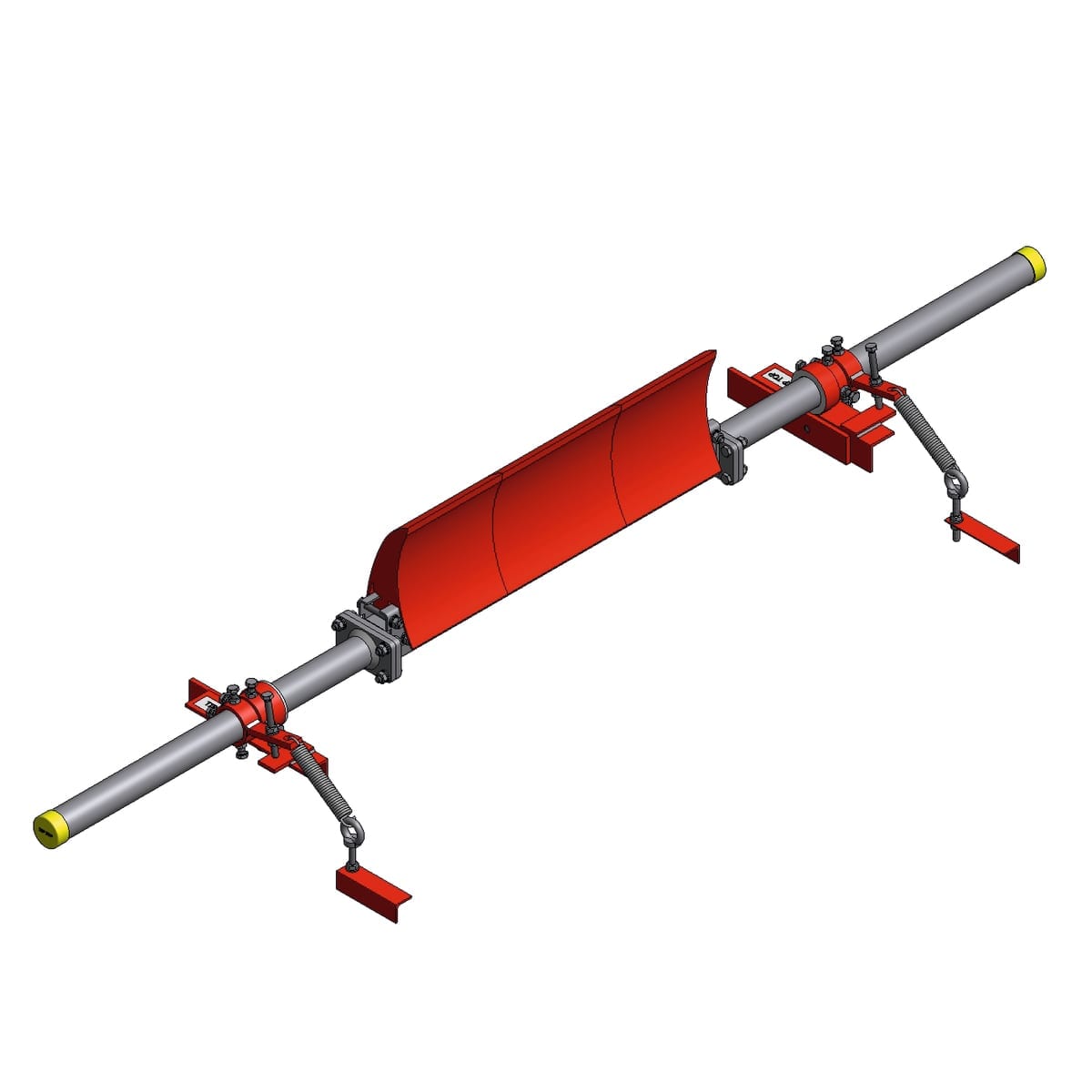

Belt Cleaning Systems

Pulley Lagging

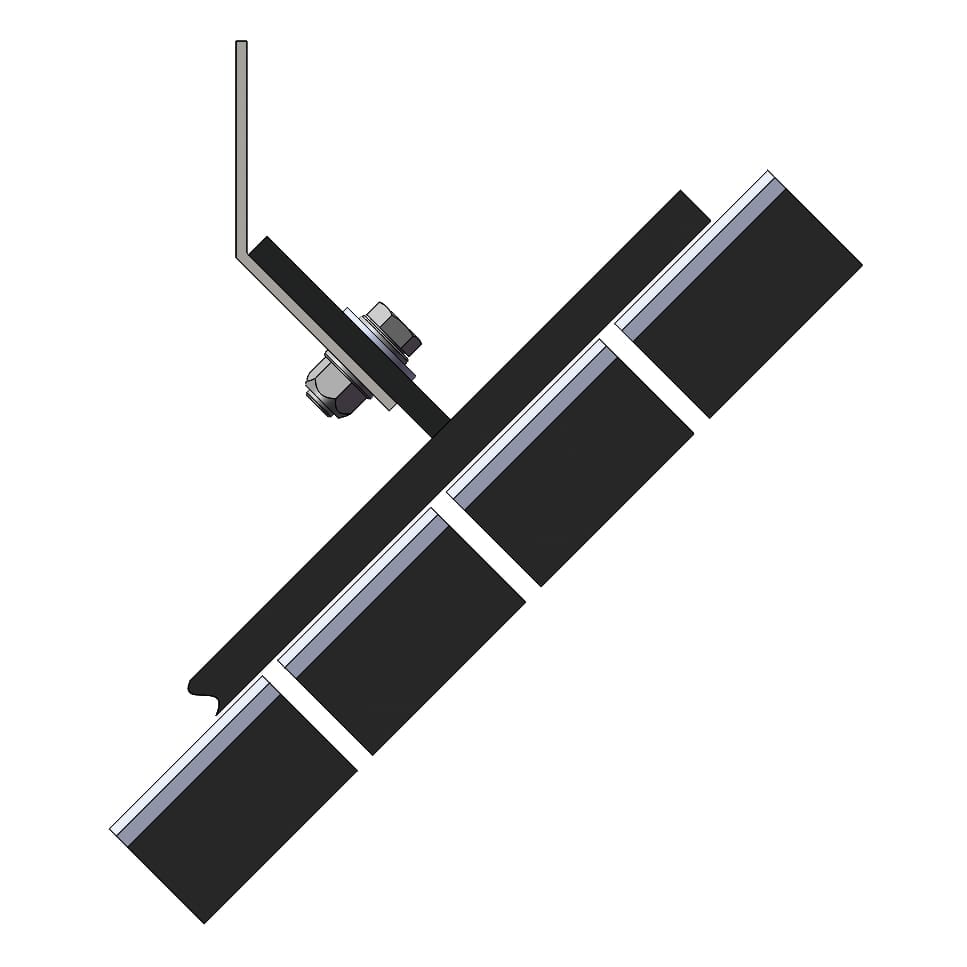

Skirting Systems
