Skirting Systems
REMASKIRT 40
REMASKIRT 50
REMASKIRT CB 195
REMASKIRT CB 195 PUR
UNISKIRT 40
UNISKIRT 60

REMASKIRT 40

High-quality skirting rubber with excellent flexibility and elasticity. Excellent sealing properties particularly in connection with REMASLIDE impact bars

Enquire Now View Catalogue

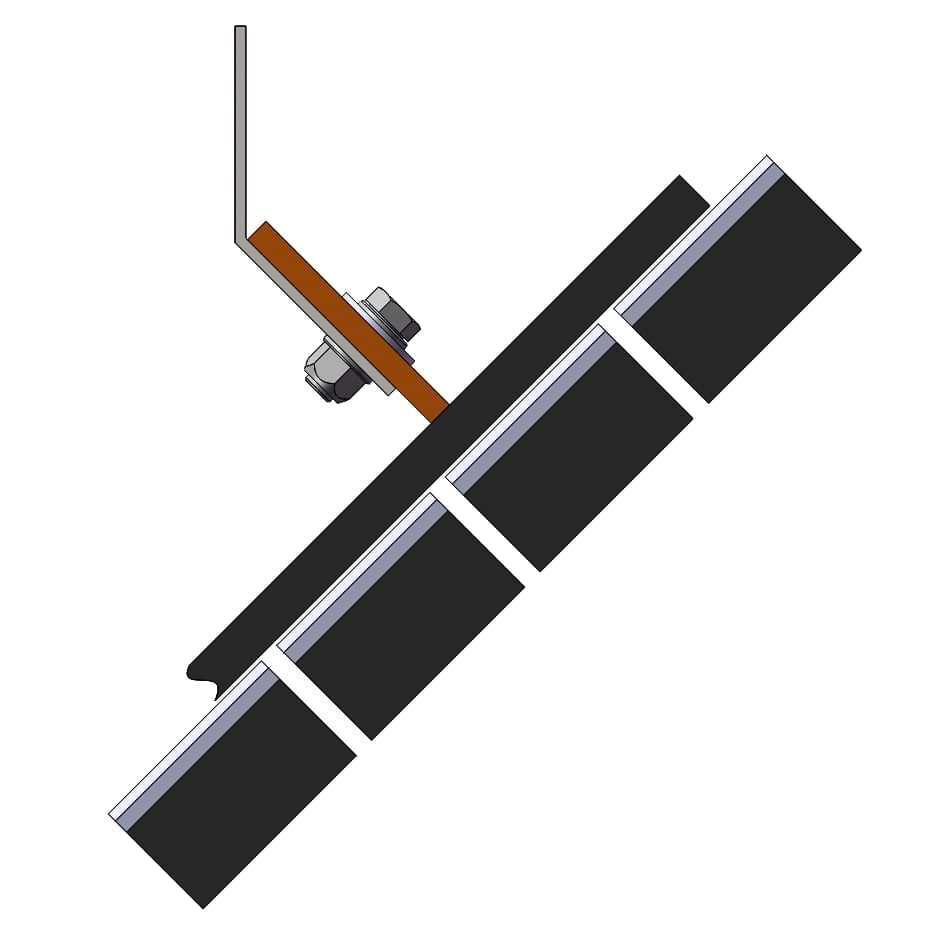

REMASKIRT 50

High-quality skirting rubber made of natural rubber with high tensile strength. Excellent sealing properties particularly in connection with REMASLIDE impact bars.

Enquire Now View Catalogue

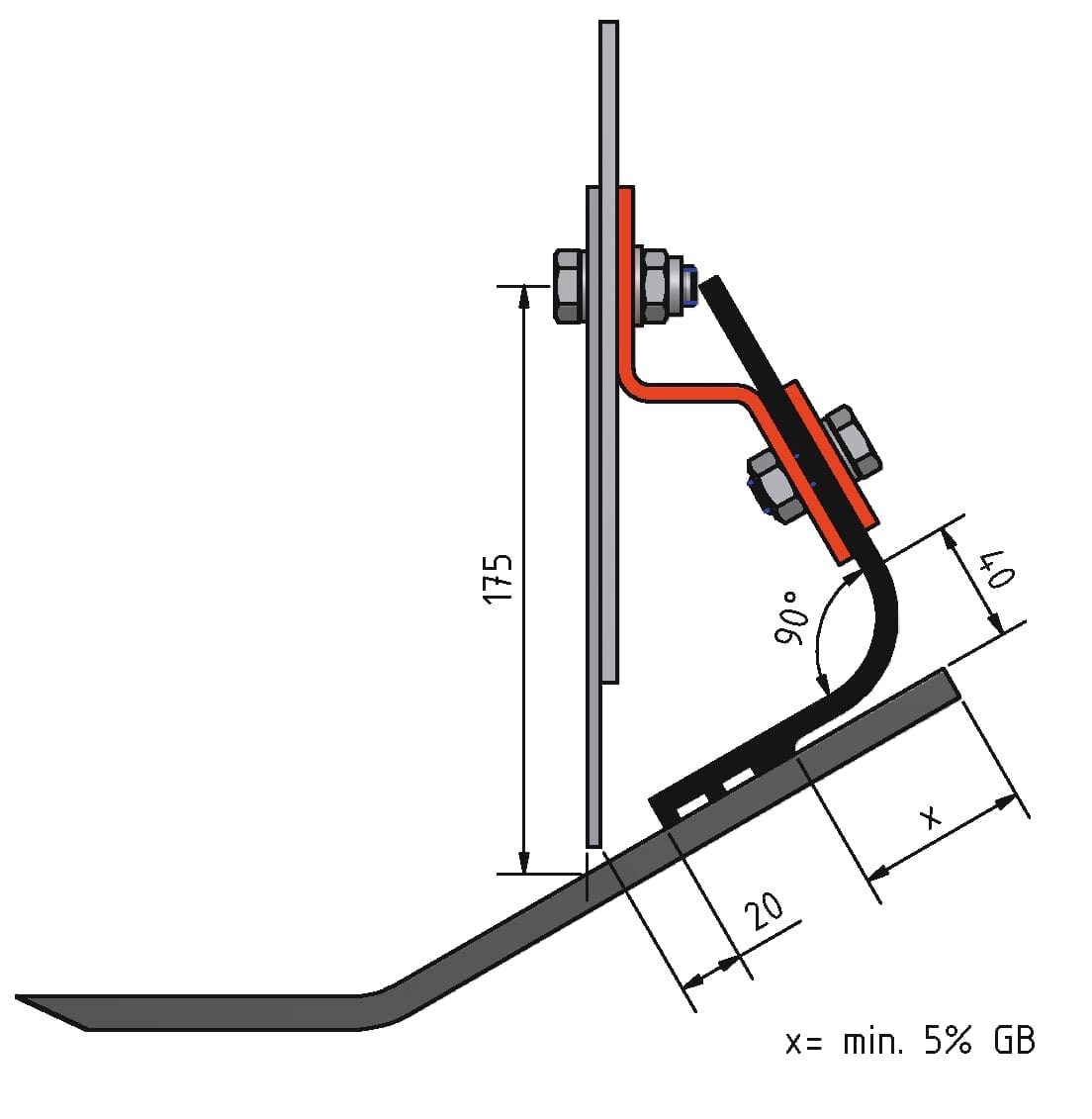

REMASKIRT CB 195

The REMASKIRT CB 195 sealing profile with matching mounting rails for your conveyor belt. Excellent sealing properties particularly in connection with REMASLIDE impact bars. The special sealing lips with their labyrinth effect keep transported material on the conveyor belt and reduce contamination and loss of material. The sealing lips are held down on the conveyor belt by their own weight, thus preventing damage.

Enquire Now View Catalogue

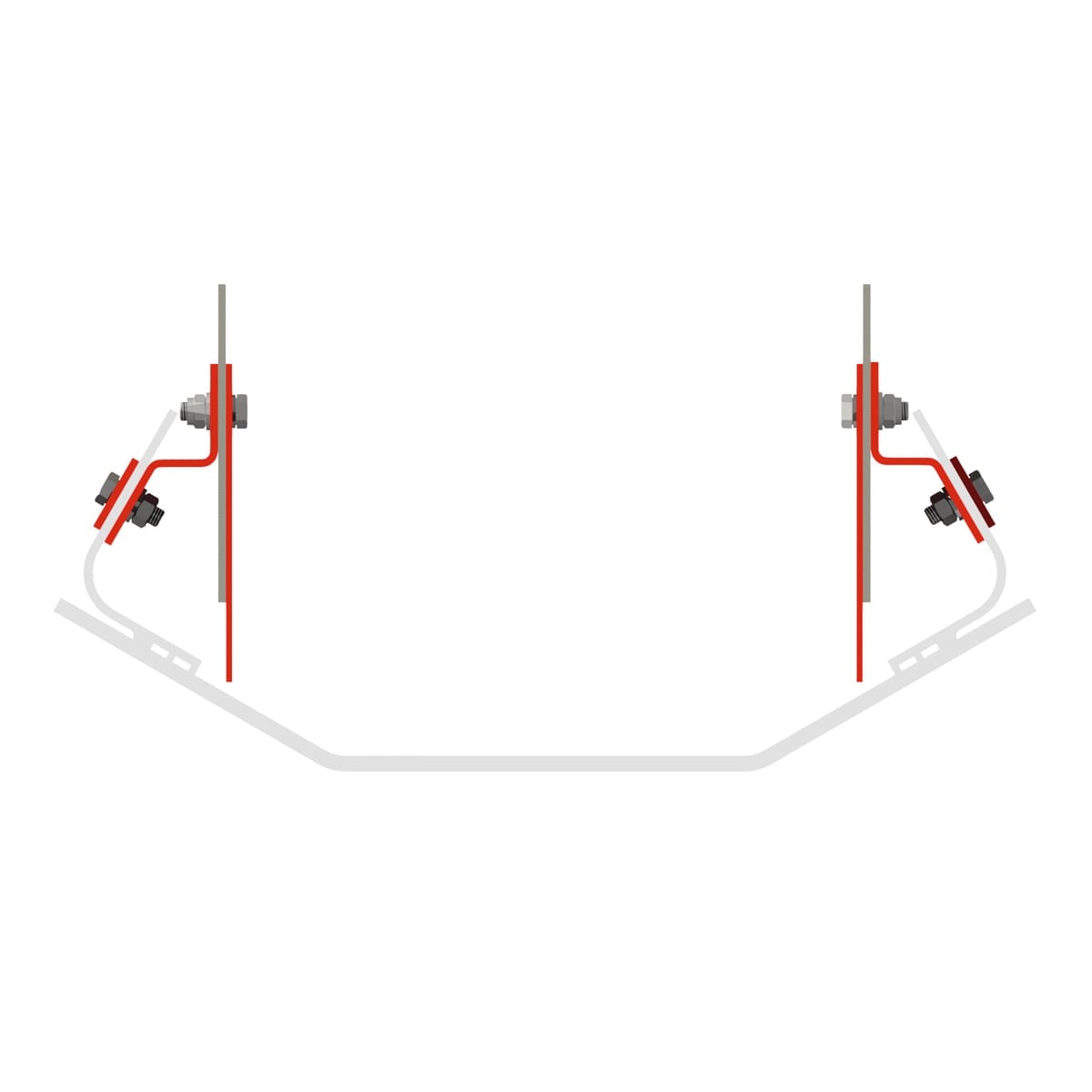

REMASKIRT CB 195 PUR

REMASKIRT CB 195 PUR sealing profile with matching mounting rails for your conveyor belt. Excellent sealing properties particularly in connection with REMASLIDE impact bars. The special sealing lips with their labyrinth effect keep transported material on the conveyor belt and reduce contamination and loss of material. The sealing lips are held down on the conveyor belt by their own weight, thus preventing damage.

Enquire Now View Catalogue

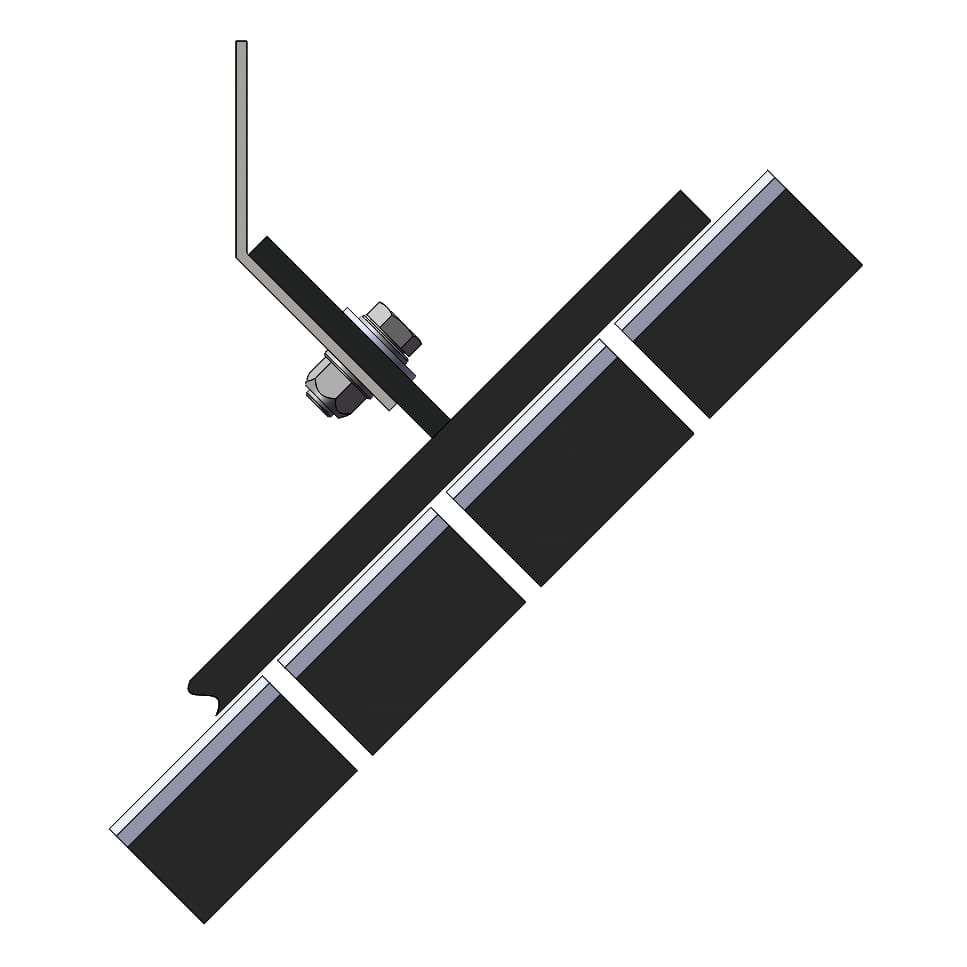

UNISKIRT 40

Skirting rubber for easy applications. Excellent sealing properties particularly in connection with UNISLIDE impact bars

Enquire Now View Catalogue

UNISKIRT 60

Skirting rubber for easy applications. Excellent sealing properties particularly in connection with UNISLIDE impact bars.

Enquire Now View Catalogue
Product Information
Properties
  • Low friction
  • Easy fitment
  • Available in thicknesses from 8 to 20mm and belt widths from 100 to 2000 mm
  • Special qualities available on request
  • Designed for temperatures from -40°C to +80°C
Area of Application
  • Skirting rubber and scraper for moist material
Specifications
Polymer basis NR DIN ISO 1629
Specific Weight 1.09 g/cm3 DIN EN ISO 1183-1
Hardness 49 Shore A DIN ISO 7619-1
Colour Green
Product Information
Properties
  • Low friction
  • Easy fitment
  • Available in thicknesses from 5 to 30mm and belt widths from 100 to 2 000 mm
  • Special qualities available on request
  • Designed for temperatures from -40°C to +80°C
Area of Application
  • Skirting rubber and scraper for wet, sticky material
Specifications
Polymer basis NR DIN ISO 1629
Specific Weight 1.11 g/cm3 DIN EN ISO 1183-1
Hardness 51 Shore A DIN ISO 7619-1
Colour Orange
Product Information
Properties
  • Easy fitment in combination with the mounting rails
  • Designed for temperatures from -40°C to +80°C
  • Self-adjusting sealing lips with labyrinth effect
  • Antistatic
Area of Application
  • Skirting rubber seal for conveyor belts transporting fine-grained and dusty material
  • Proven especially useful for conveying coal
Specifications
Polymer basis NR/SBR DIN ISO 1629
Specific Weight 1.10 g/cm3 DIN EN ISO 1183-1
Hardness 63 Shore A DIN ISO 7619-1
Colour Black
Product Information
Properties
  • Oil and grease resistant
  • Easy fitment in combination with the mounting rails
  • Designed for temperatures from -40°C to +80°C
  • Self-adjusting sealing lips with labyrinth effect
  • Antistatic
Area of Application
  • Skirting rubber seal for conveyor belts transporting oil-containing, fine-grained, dusty and wet material
  • Proven especially useful for conveying coal
  • Suited for use with white conveyor belts
Specifications
Hardness 55 Shore A DIN ISO 7619-1
Colour White
Product Information
Properties
  • Low friction
  • Easy fitment
  • Available in thicknesses from 6 to 20 mm
  • Designed for temperatures from -40°C to +80°C
Area of Application
  • Skirting rubber and scraper for moist, sticky material for non-complex applications
Specifications
Polymer basis NR/SBR DIN ISO 1629
Specific Weight 1.23 g/cm3 DIN EN ISO 1183-1
Hardness 45 Shore A DIN ISO 7619-1
Colour Black
Product Information
Properties
  • Low friction
  • Easy fitment
  • Available in thicknesses from 6 to 40 mm
  • Designed for temperatures from -40 °C to +80 °C
Area of Application
  • Skirting rubber and scraper non-complex applications
Specifications
Polymer basis NR/BR/SBR DIN ISO 1629
Specific Weight 1.18 g/cm3 DIN EN ISO 1183-1
Hardness 60 Shore A DIN ISO 7619-1
Colour Black
